Riser Material | Plastic, Stainless Steel |
---|

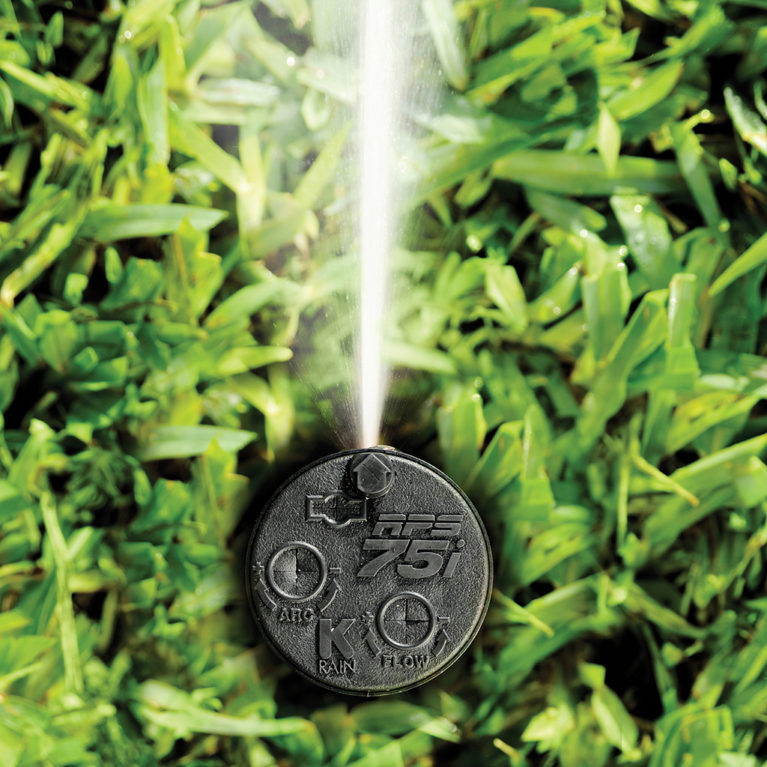

RPS75i – Gear Drive Sprinkler – Bulk Pack
PACK OF 20
The RPS 75i rotor is designed for residential and light commercial applications. This new addition to K-Rain’s line of rotors retains all of the features and benefits of the RPS75™ and delivers even more!
To reduce the radius and distance in other rotors on the market, the nozzle must be changed or the break-up screw must be engaged. These steps limit the maximum reduction to 25% and cause uneven watering. With the RPS 75i, a simple turn of the patented Flow Shut-Off controls distance and water flow proportionately—up to 50%. The RPS 75i delivers even water distribution, eliminates dry spots and provides better zone performance while saving water. All of this in just one rotor—the right rotor for every landscape!
- 3/4″ Female Threaded 20 mm BSP Inlet – Replaces all standard rotors
- Direct replacement for Hunter® PGP®
- Riser fits in existing Hunter® PGP® cans – Simply unscrew the existing riser from the PGP® can and replace with the RPS75 riser
- Top Adjustment – No training necessary, the RPS75 has the same adjustment procedure as the Hunter® PGP®
- Full and Part circle rotation – Provides a full range of adjustment from 40* to 360*
- Universal adjustment tool – Compatible with existing Hunter® products
- Rubber Cover – Seals out dirt and increases product durability
- Wide Selection of Nozzles – Provides flexibility in system design
- Inlet – 3/4” Female Threaded 20mm BSP
- Reduce Distance by Reducing Flow Rate
- Save Time on Every Project – New or Retrofit
- Rugged RPS Family Construction
- Conserves Water
- Superior Uniformity
- Fewer Zones Required
- Improved Hydraulics
Specifications
- Arc Adjustment Range: 40° to 360°
- Flow Range: .35 – 8.6 GPM
- Pressure Rating: 30 – 70 PSI
- Precipitation Rate: .124 – 2.0 in./hr.
- Overall Height (Popped Down): 7 3/8″
- Recommended Spacing: 25′ to 45′
- Radius: 11′ to 51′
- Nozzle Trajectory: 25°
- Low Angle Nozzle Trajectory: 11°
- Nozzles included in box
