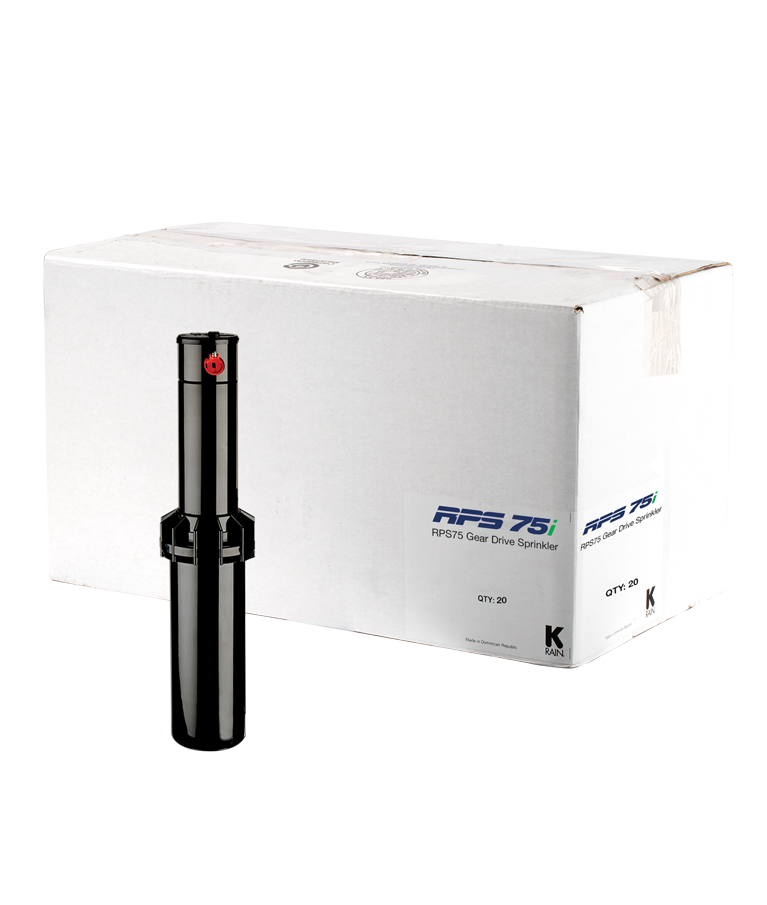

RPS75 – Gear Drive Sprinkler – Bulk Pack

PACK OF 20

The RPS75 gear drive rotor is designed for residential and light commercial applications. Built to perform trouble-free for years. Our patented reversing mechanism, assures continuous reverse and return. With K-Rain’s wide selection of standard and low angle nozzles, the RPS75™ provides even water distribution.

  • Right Position Start – Rotor rotates counterclockwise from fixed right start position
  • Top Adjustment – No training necessary
  • Full and Part Circle Rotation – Provides a full range of adjustment from 40° to 360°
  • Non-flushing Wiper Seal – Reduces leaks caused by debris trapped under seal
  • 3/4″ (20 mm) Inlet – Replaces all standard rotors
  • Ideal for Low Flow Applications
  • Universal Adjustment Tool
  • Rubber Cover – Seals out dirt and increases durability
  • Wide Selection of Nozzles – Including standard and low angle, provides flexibility in system design

SKURPS75TP Category
Close
Specifications

Specifications

  • Inlet: 3/4″ (20 mm) Threaded BSP
  • Arc Adjustment Range: 40° – 360°
  • Flow Range: .75 – 8.2 GPM (2.6 – 32.6 LPM)
  • Pressure Rating: 30 – 70 PSI (2.1 – 4.8 bars)
  • Precipitation Rate: .16 – .70 in/hr (4 – 18 mm/hr)
  • Overall Height (Popped Down): 7 3/8″ (19.7 cm)
  • Recommended Spacing: 25′ – 45′ (7.6 – 13.7 m)
  • Radius: 22′ – 51′ (6.7 – 15.5 m)
  • Nozzle Trajectory: 26°
  • Low Angle Nozzle Trajectory: 11°
  • Riser Height: 4″ (10,2 cm)
  • Nozzles sold separately
