Specifications

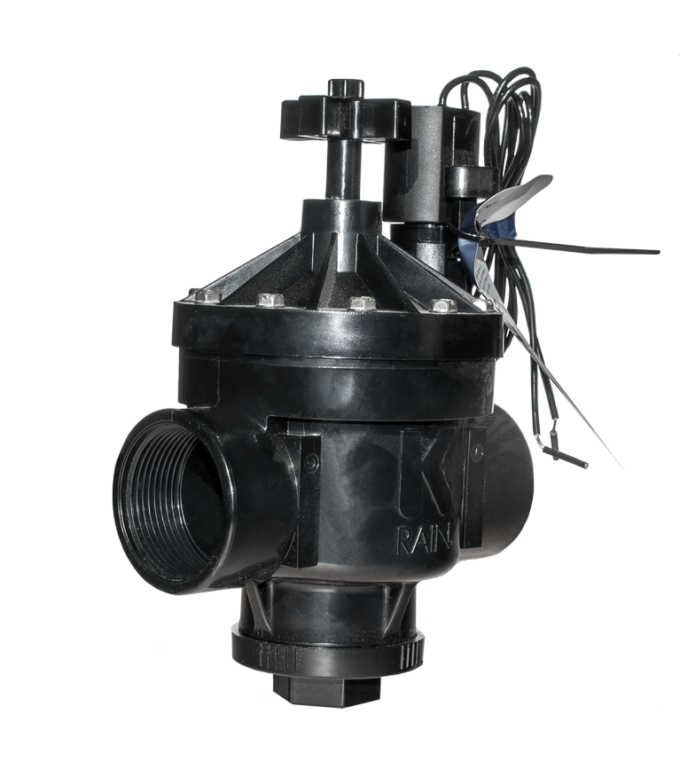

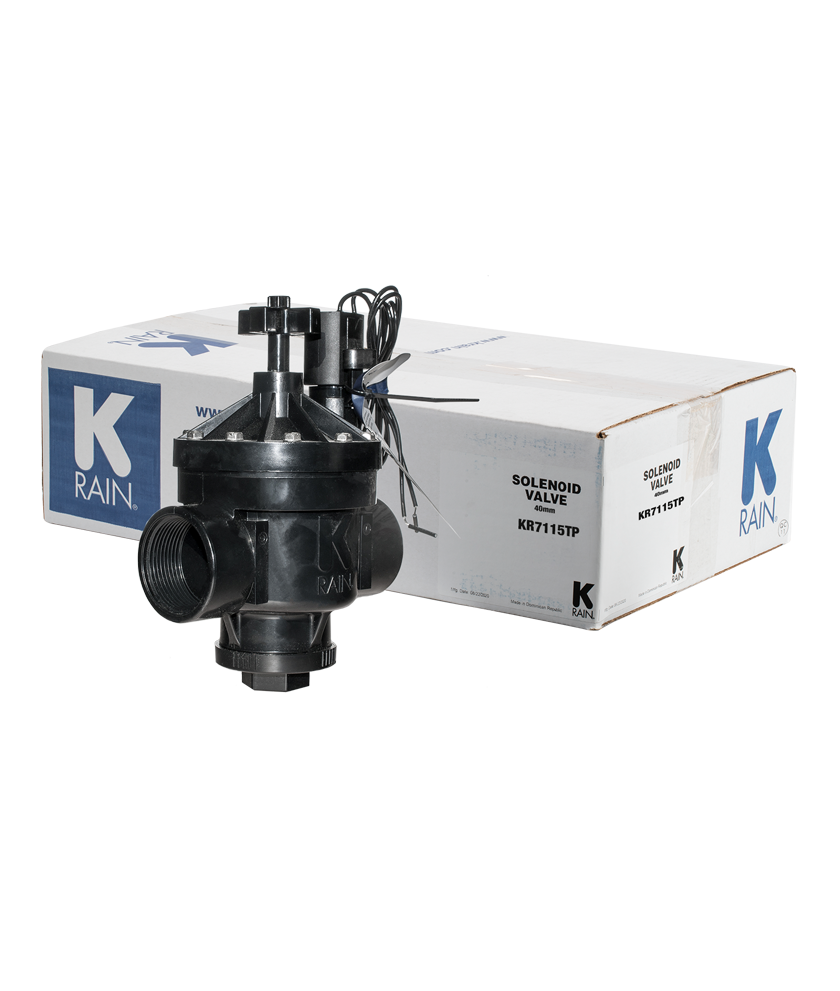

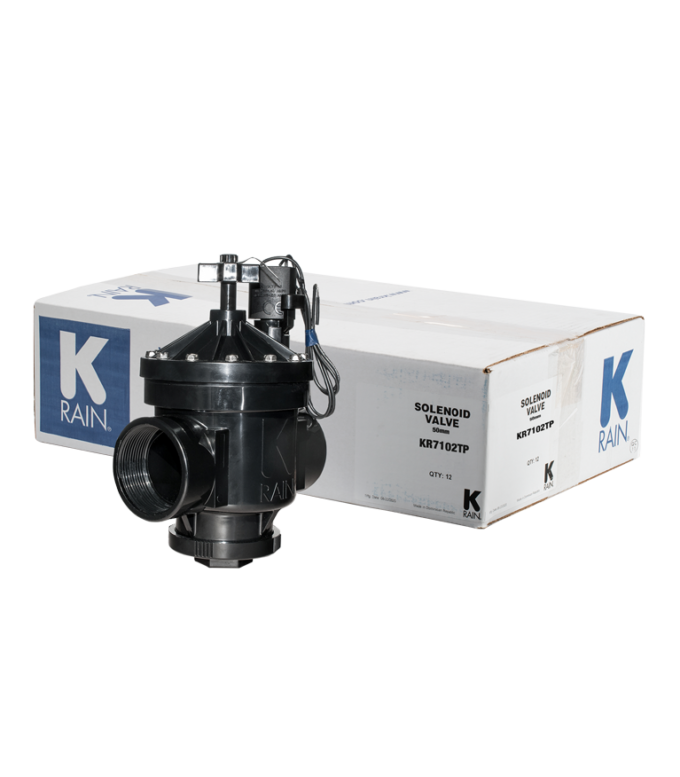

Pro Series 150 Valve 40mm – Bulk Pack
PACK OF 6
K-Rain’s ProSeries 150 Valves offer the irrigation professional a wide array of features and benefits. The K-Rain range of solenoid valves is made from high-quality UV resistant PVC construction and suitable for residential, agricultural and commercial applications. Working pressure 0.7bar (70kpa) to 10bar (1000kpa). High-quality coil design 24VAC. The 1″ valve has a removable metering pin and external bleed screw, promoting easy maintenance and manual operation. The 1.5” and 2” models feature a removable inlet cap to easily modify the configuration from globe to angle style. They also have a removable metering pin and external bleed screw promoting easy maintenance and manual operation.
- Threaded jar top allows for easy servicing after installation
- Jar top is fully inter-changeable with Toro / Richdel style
- Manual internal bleed through solenoid
- External bleed screw with removable metering pin
- 2 years warranty
Add to WishlistRemove from Wishlist
Add to Wishlist
Features
- 40mm & 50mm valves come with flow control
- 40mm & 50mm valves can operate as globe or angle style
- Pressure range for 25mm valves 70-1000kpa
- Pressure range for 40mm – 50mm valves 140 – 1000kpa
- Flow range for 25mm valves 1 – 113 Lpm
- Flow range for 40mm – 50mm valves 20 – 450 Lpm
Range
| Code | Size | Description | Quantity |
|---|---|---|---|

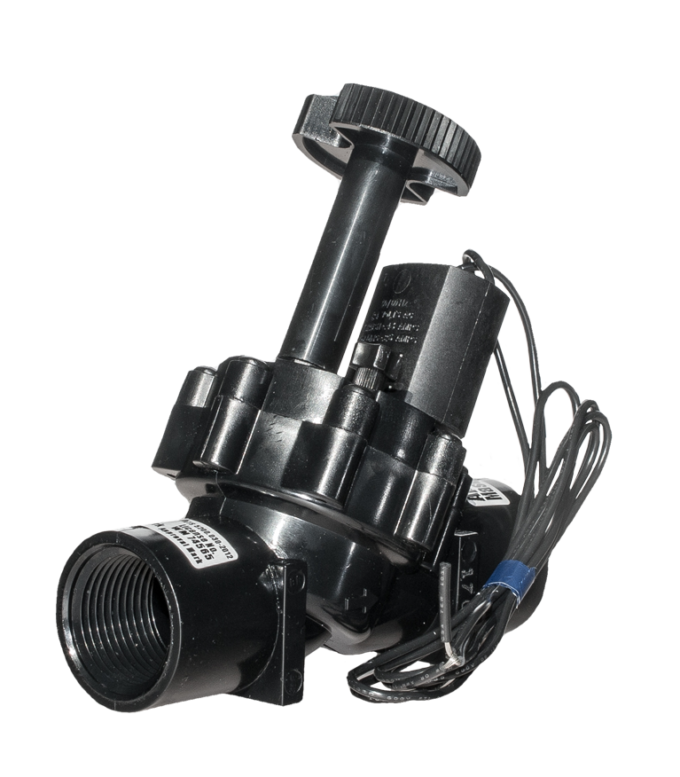

| KR7001 | 25mm | Solenoid Valve with F/C | 1 |

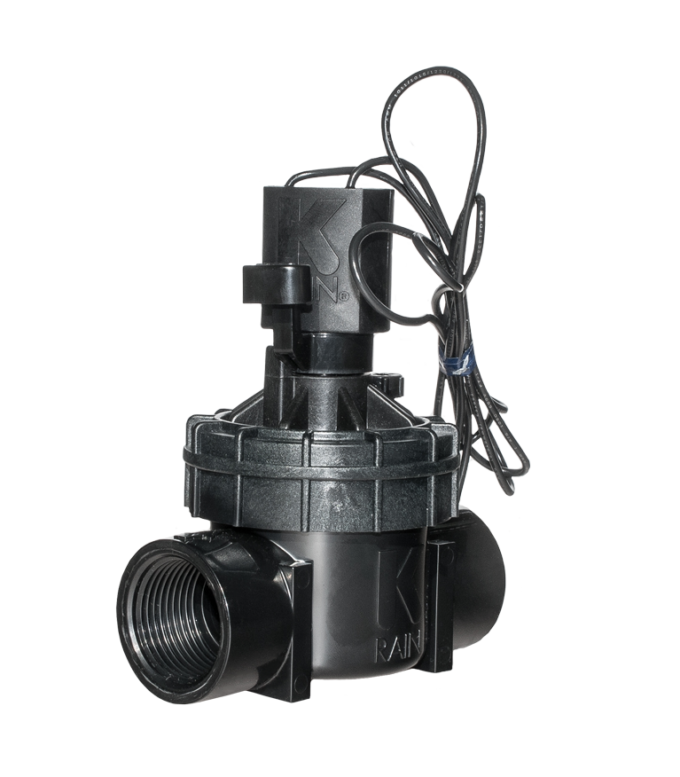

| KR7001J | 25mm | Pro Series 150 Valve with Jar Top | 1 |
| KR7101 | 25mm | Pro Series 150 Valve | 1 |
| KR7115 | 40mm | Pro Series 150 Valve | 1 |
| KR7102 | 50mm | Pro Series 150 Valve | 1 |
| KR7001TP | 25mm | Solenoid Valve with F/C Bulk | 12 |

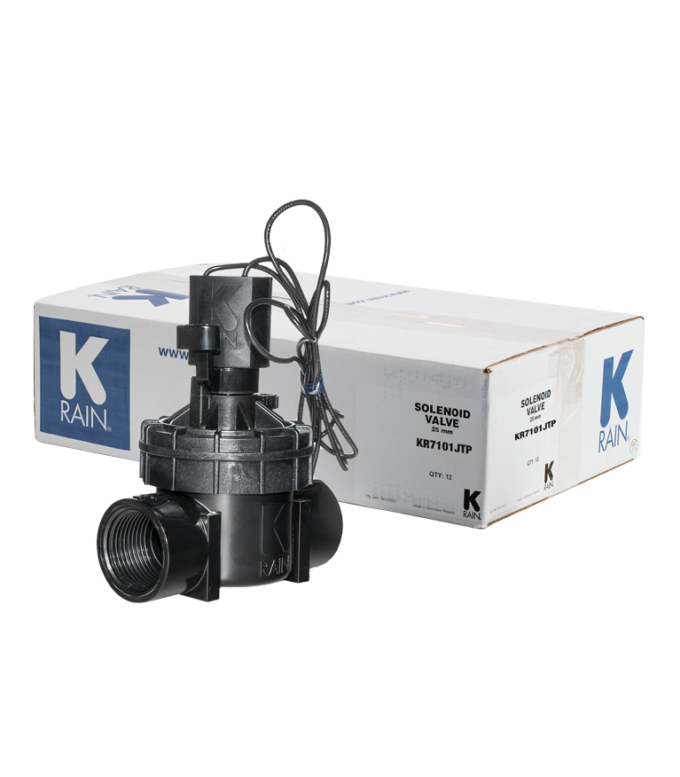

| KR7001JTP | 25mm | Pro Series 150 Valve with Jar Top Bulk | 12 |
| KR7101TP | 25mm | Pro Series 150 Valve Bulk | 12 |
| KR7115TP | 40mm | Pro Series 150 Valve Bulk | 6 |
| KR7102TP | 50mm | Pro Series 150 Valve Bulk | 6 |
