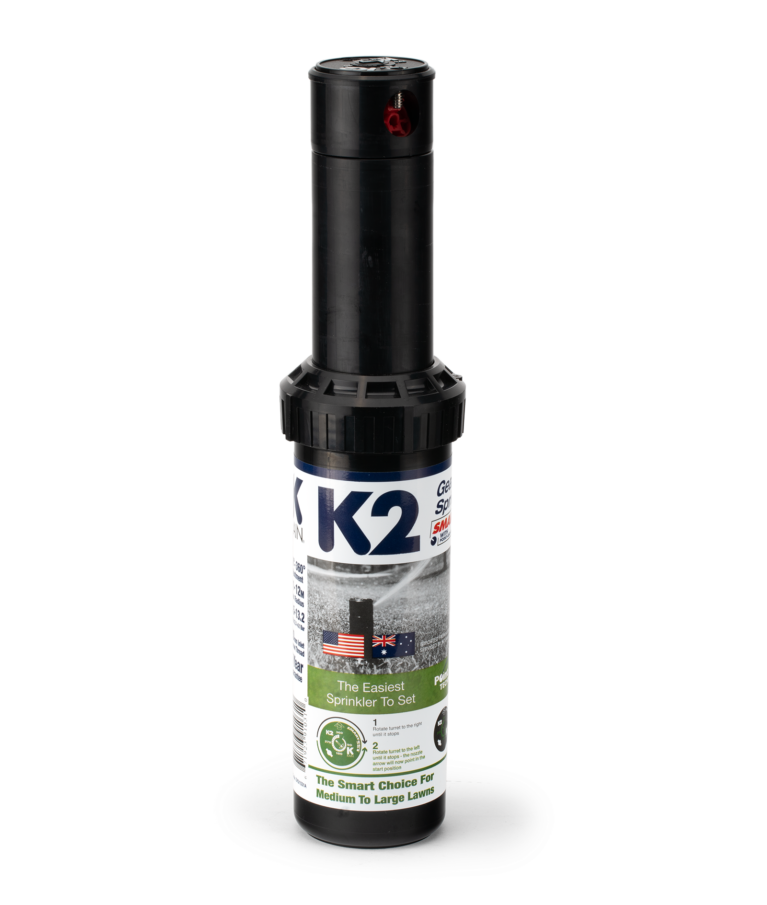

K2 – Gear Drive Sprinkler
Ideal for larger lawns and landscape areas. Ratcheting riser and tamper resistant clutch. Easy to set point-and-shoot technology. Part circle and full circle pattern. The K-Rain K2 comes with patented easy arc setting that allows adjustment of distance. The K2 comes with a pre-installed 9.5 LPM nozzle.
- Arc Adjustment Range – 40 to 360 degrees

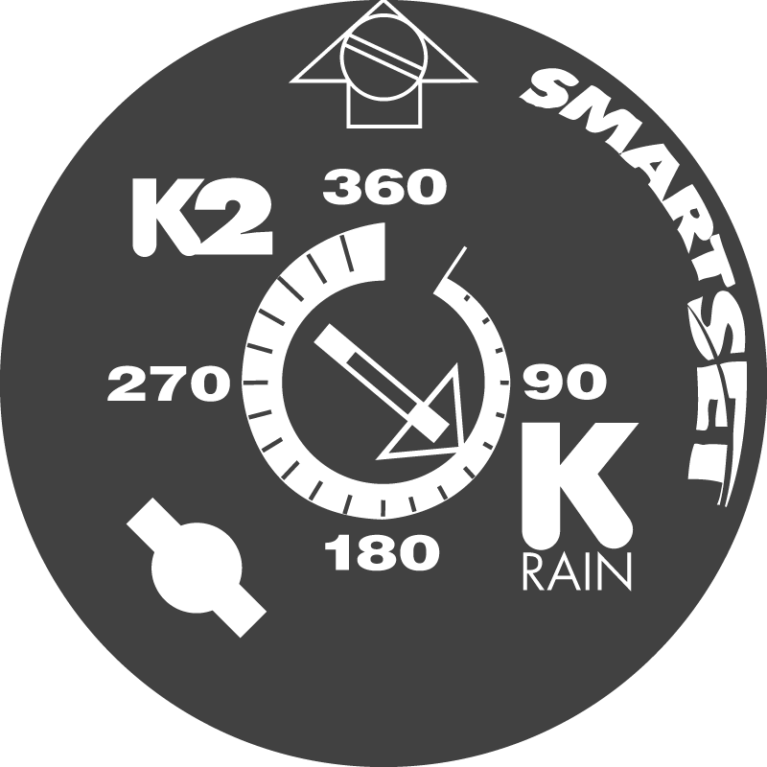

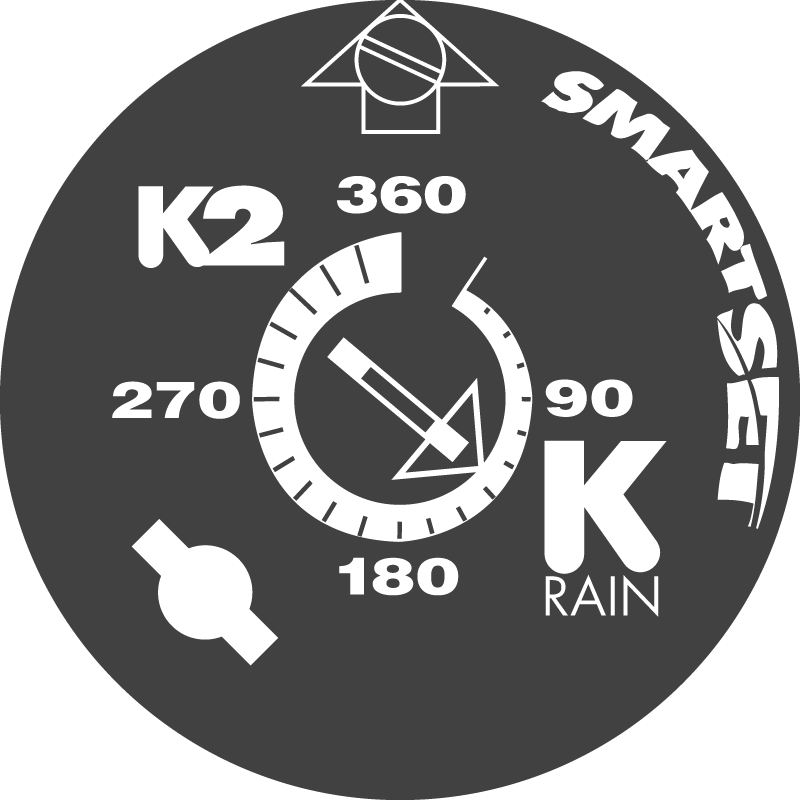

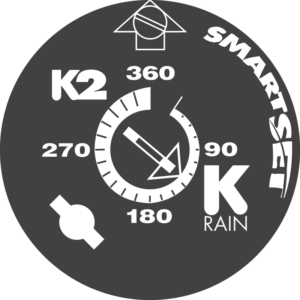

- Patented Easy Top Arc Indication– Takes the guesswork out of setting watering pattern.
- 5” Pop-Up Height – Provides higher clearance for tall grass
- Patented Reversing Mechanism – Prolongs life of sprinkler
- Exclusive Tamper Resistant Clutch with Auto Reset – Prevents breakage if rotated past stop point and returns sprinkler to preset pattern.
- Ratcheting Riser – Allows the riser to be turned to direct the water pattern.
- Radius Reduction Screw – Adjust water flow and fallout pattern up to 25%.
- Replaces All Major Brands – Hunter®, Rainbird®, Toro®, Orbit®, Nelson®
- Nozzles sold separately
Add to WishlistRemove from Wishlist
Add to Wishlist
Features:
- Arch Adjustment: 40º – 360º
- Spray radius: 11m – 12m max
- Flow Rate: 9.5 – 13.2 LPM at 2.1 – 3.4 Bar
- Inlet: 20mm screw thread
- Riser: Ratcheting Riser and tamper-resistant clutch
- Spray pattern: Part and full circle

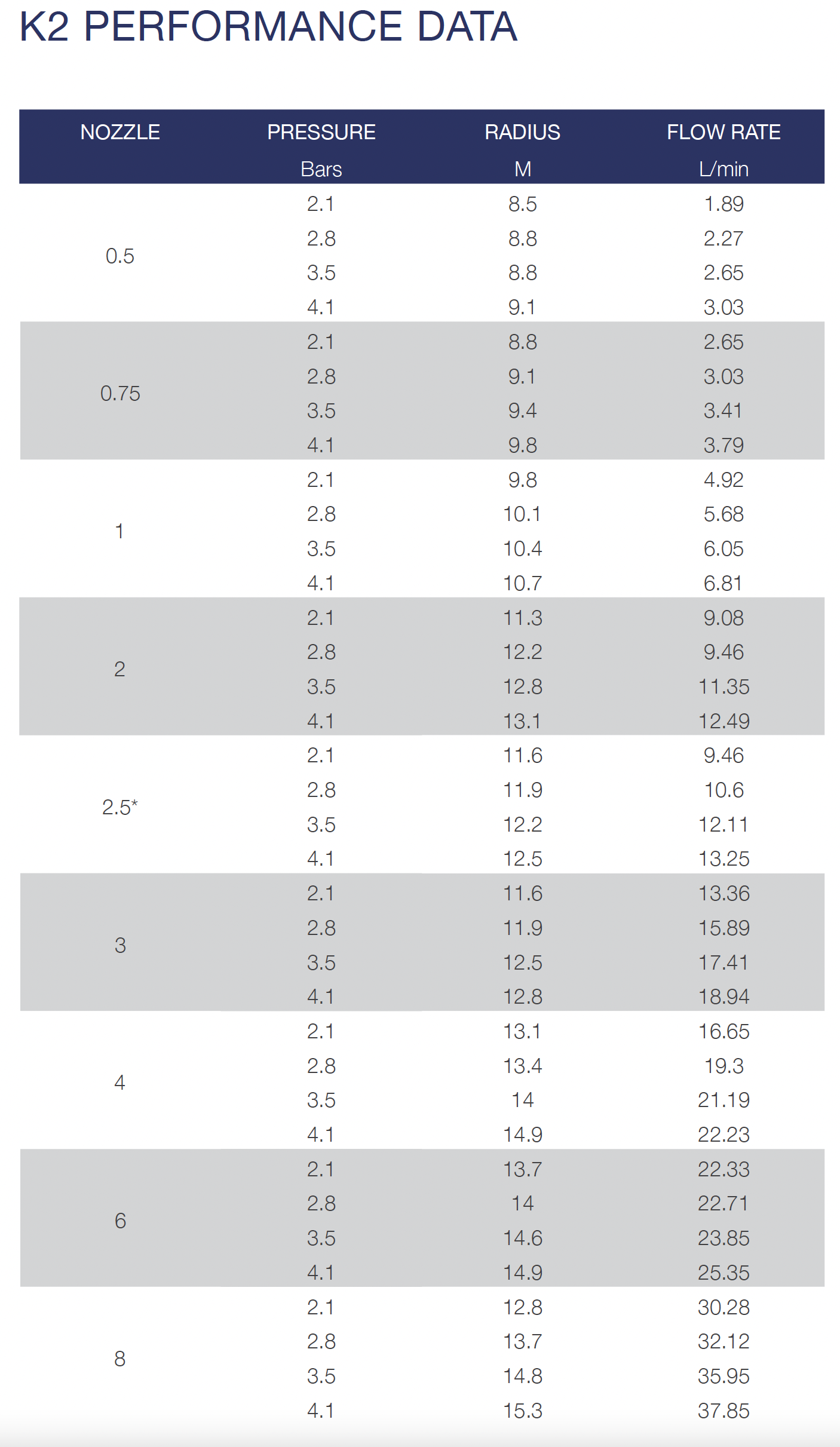

Nozzle | Pressure kPa | Radius M | Flow LPM |
---|---|---|---|
2.5* | 206 275 345 413 | 11.6 11.9 12.2 12.5 | 9.46 10.60 12.11 13.25 |
0.5 | 206 275 345 413 | 8.5 8.8 8.8 9.1 | 1.89 2.27 2.65 3.03 |
0.75 | 206 275 345 413 | 8.8 9.1 9.4 9.8 | 2.65 3.03 3.41 3.79 |
1 | 206 275 345 413 | 9.8 10.1 10.4 10.7 | 4.92 5.68 6.05 6.81 |
2 | 206 275 345 413 | 11.3 12.2 12.8 13.1 | 9.08 9.46 11.35 12.49 |
3 | 206 275 345 413 | 11.6 11.9 12.5 12.8 | 13.36 15.89 17.41 18.94 |
4 | 206 275 345 413 | 13.1 13.4 14.0 14.9 | 16.65 19.30 21.19 22.23 |
6 | 206 275 345 413 | 13.7 14.0 14.6 14.9 | 22.33 22.71 23.85 25.35 |
8 | 206 275 345 413 | 12.8 13.7 14.8 15.3 | 30.28 32.12 35.95 37.85 |
