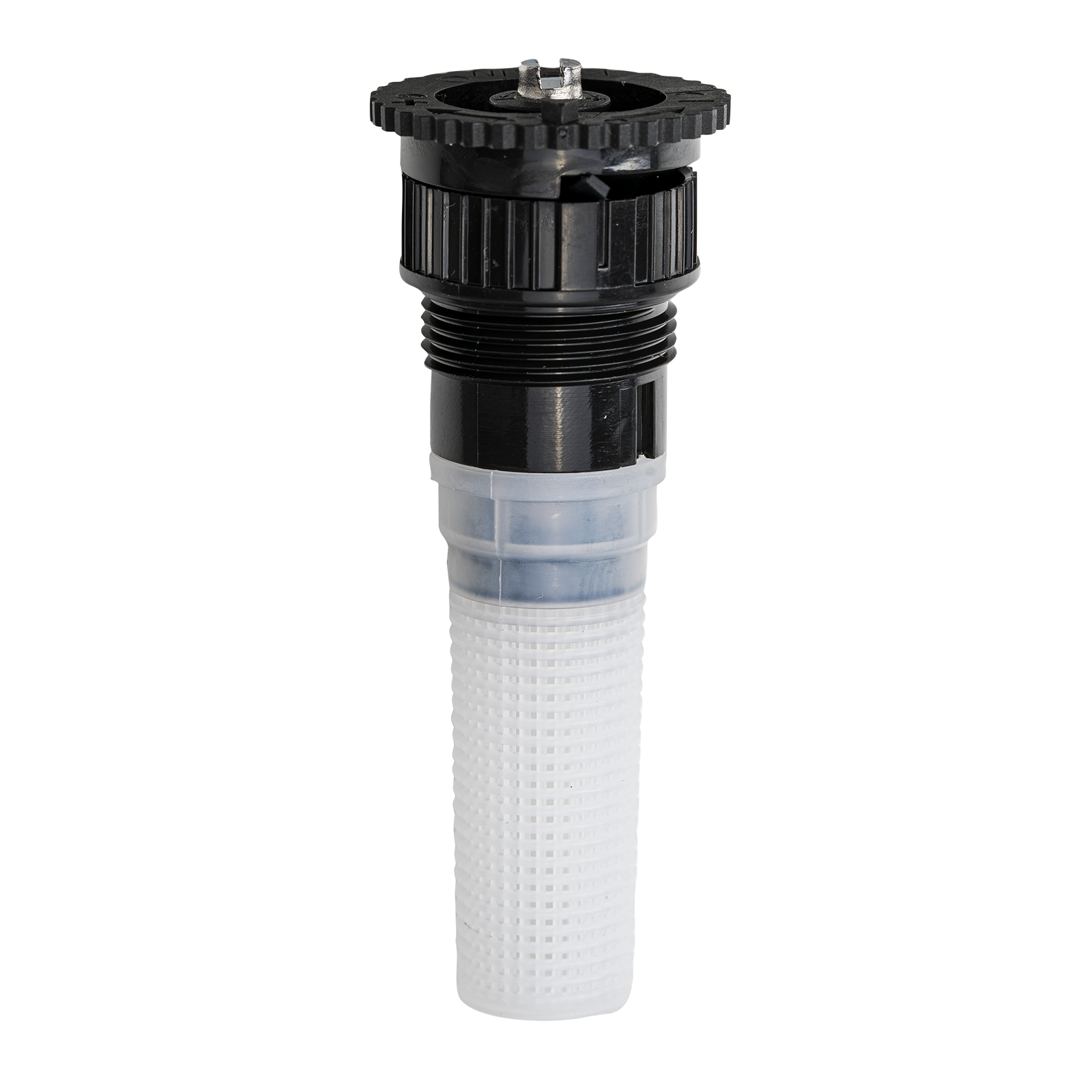

Spray nozzles are important, but often an overlooked component of a well-designed irrigation system. The proper nozzle ensures accurate, even delivery of water in the pattern you need. Adjustable Nozzles have a superior spray pattern that ensures proper precipitation rates throughout the adjustment. Extra long filters provide longer time between cleanings.
Download Full Performance Data
| Arc | Pressure (kPa) | Radius (m) | Flow Rate (L/min) | Precip. (mm/hour) |
|---|---|---|---|---|
| 90° | 138 207 276 345 | 4.6 5.2 5.5 5.8 | 4.92 6.06 6.81 7.57 | 65 62 63 62 |
| 180° | 138 207 276 345 | 4.3 4.6 4.9 5.5 | 6.81 8.71 9.84 10.60 | 52 58 57 49 |
| 270° | 138 207 276 345 | 4.3 4.6 4.9 5.5 | 10.22 12.11 13.63 15.14 | 52 53 53 46 |
| 360° | 138 207 276 345 | 4.3 4.6 4.9 4.9 | 12.87 15.90 17.79 20.06 | 49 53 52 58 |
| Code | Description | Throw | Spray | Quantity |
|---|---|---|---|---|
| KNMV8 | 8′ Male Thread | 2.4m | 0-360° Adjustable Spray | 1 |
| KNMV10 | 10′ Male Thread | 3m | 0-360° Adjustable Spray | 1 |
| KNMV12 | 12′ Male Thread | 3.6m | 0-360° Adjustable Spray | 1 |
| KNMV15 | 15′ Male Thread | 4.5m | 0-360° Adjustable Spray | 1 |
| KNMV8TP | 8′ Male Thread Bulk | 2.4m | 0-360° Adjustable Spray | 20 |
| KNMV10TP | 10′ Male Thread Bulk | 3m | 0-360° Adjustable Spray | 20 |
| KNMV12TP | 12′ Male Thread Bulk | 3.6m | 0-360° Adjustable Spray | 20 |
| KNMV15TP | 15′ Male Thread Bulk | 4.5m | 0-360° Adjustable Spray | 20 |
