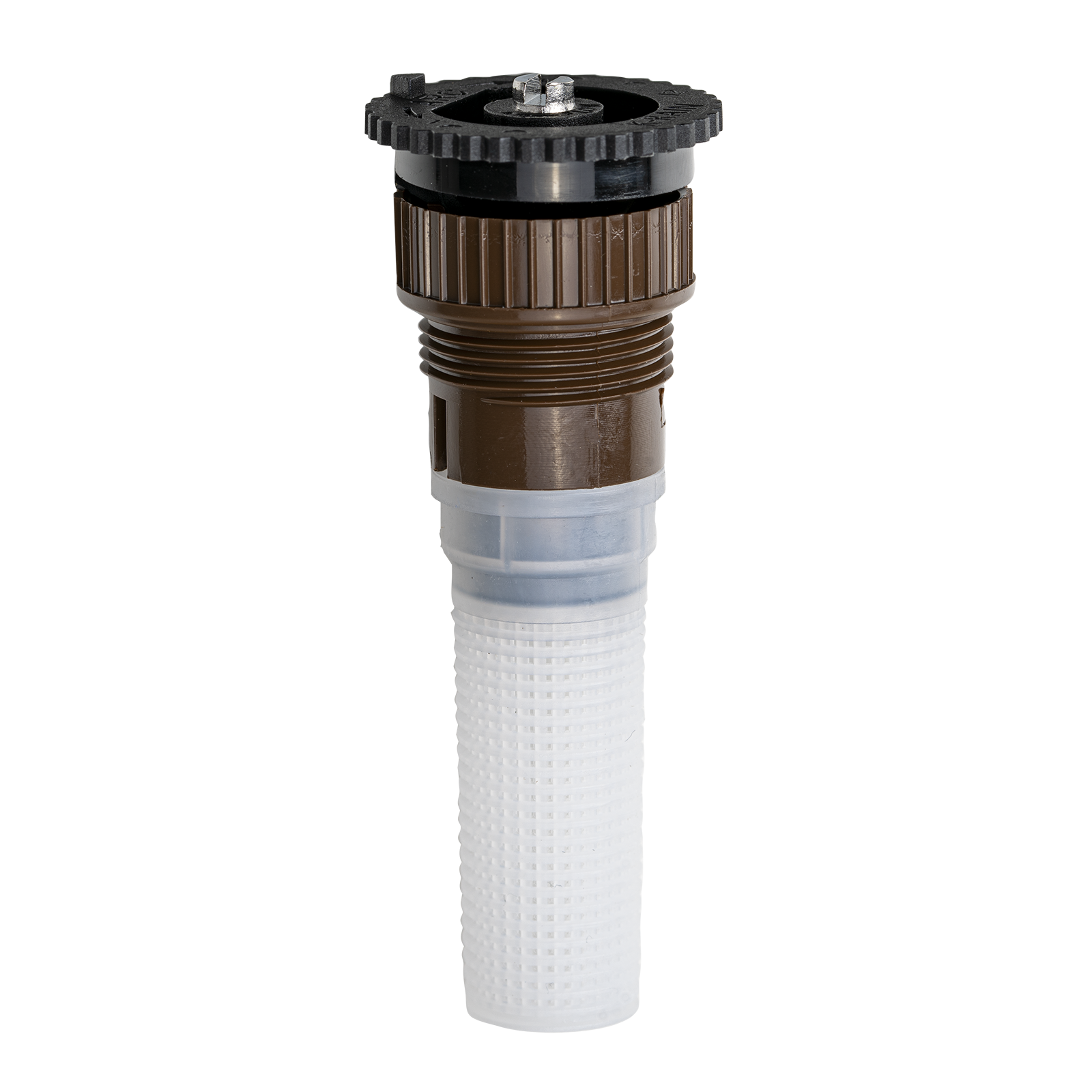

Spray nozzles are important, but often an overlooked component of a well-designed irrigation system. The proper nozzle ensures accurate, even delivery of water in the pattern you need. Adjustable Nozzles have a superior spray pattern that ensures proper precipitation rates throughout the adjustment. Extra long filters provide longer time between cleanings.
Download Full Performance Data
| Arc | Pressure (kPa) | Radius (m) | Flow Rate (L/min) | Precip. (mm/hour) |
|---|---|---|---|---|
| 90° | 138 207 276 345 | 3.7 4.0 4.3 4.6 | 4.16 4.92 5.68 6.44 | 86 87 86 85 |
| 180° | 138 207 276 345 | 3.4 3.7 4.0 4.3 | 6.06 6.81 8.33 9.08 | 75 70 73 69 |
| 270° | 138 207 276 345 | 3.4 3.7 3.7 4.0 | 7.19 9.08 9.84 12.11 | 59 63 68 71 |
| 360° | 138 207 276 345 | 3.4 3.7 3.7 4.0 | 10.60 11.73 13.25 14.76 | 65 61 69 65 |
| Code | Description | Throw | Spray | Quantity |
|---|---|---|---|---|
| KNMV8 | 8′ Male Thread | 2.4m | 0-360° Adjustable Spray | 1 |
| KNMV10 | 10′ Male Thread | 3m | 0-360° Adjustable Spray | 1 |
| KNMV12 | 12′ Male Thread | 3.6m | 0-360° Adjustable Spray | 1 |
| KNMV15 | 15′ Male Thread | 4.5m | 0-360° Adjustable Spray | 1 |
| KNMV8TP | 8′ Male Thread Bulk | 2.4m | 0-360° Adjustable Spray | 20 |
| KNMV10TP | 10′ Male Thread Bulk | 3m | 0-360° Adjustable Spray | 20 |
| KNMV12TP | 12′ Male Thread Bulk | 3.6m | 0-360° Adjustable Spray | 20 |
| KNMV15TP | 15′ Male Thread Bulk | 4.5m | 0-360° Adjustable Spray | 20 |
