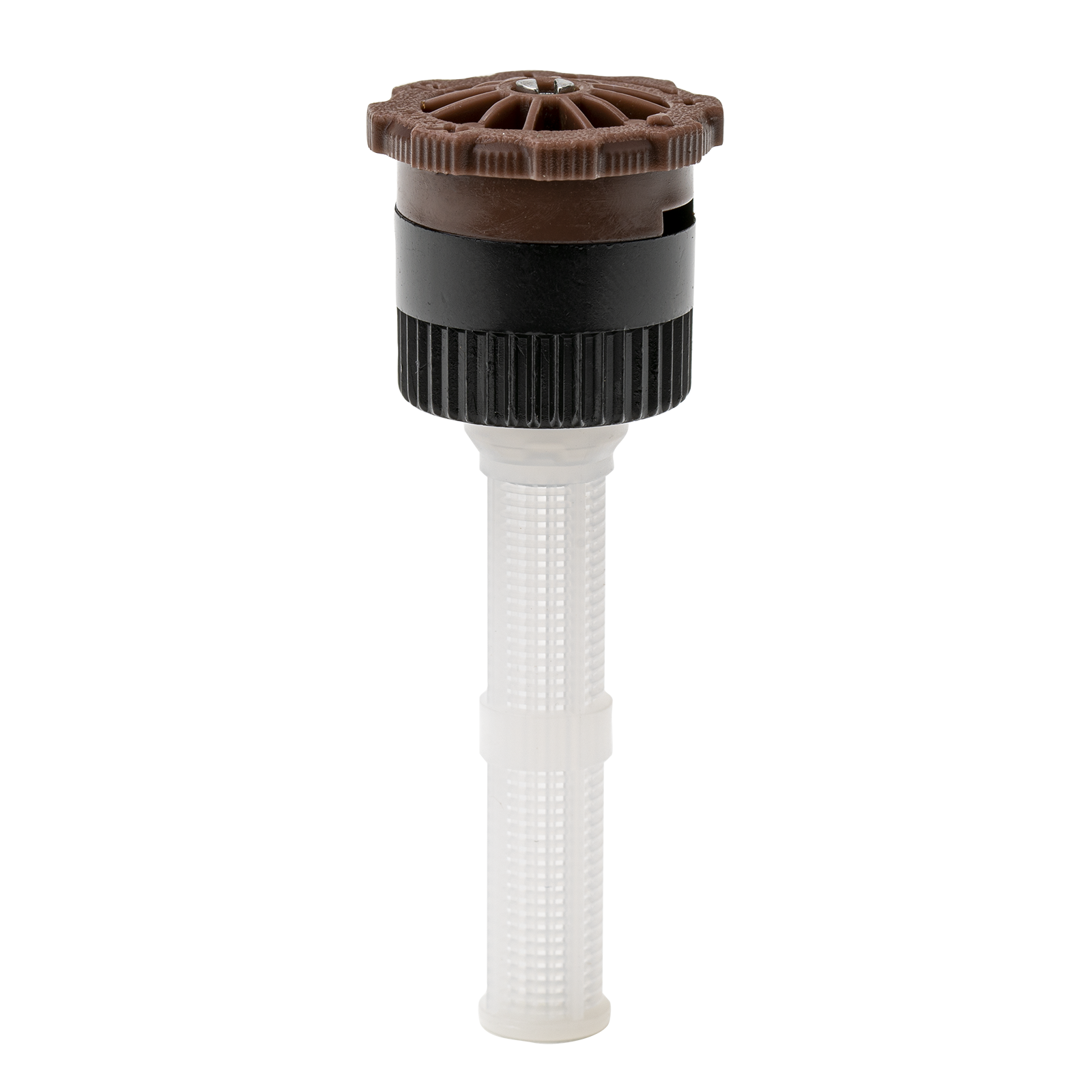

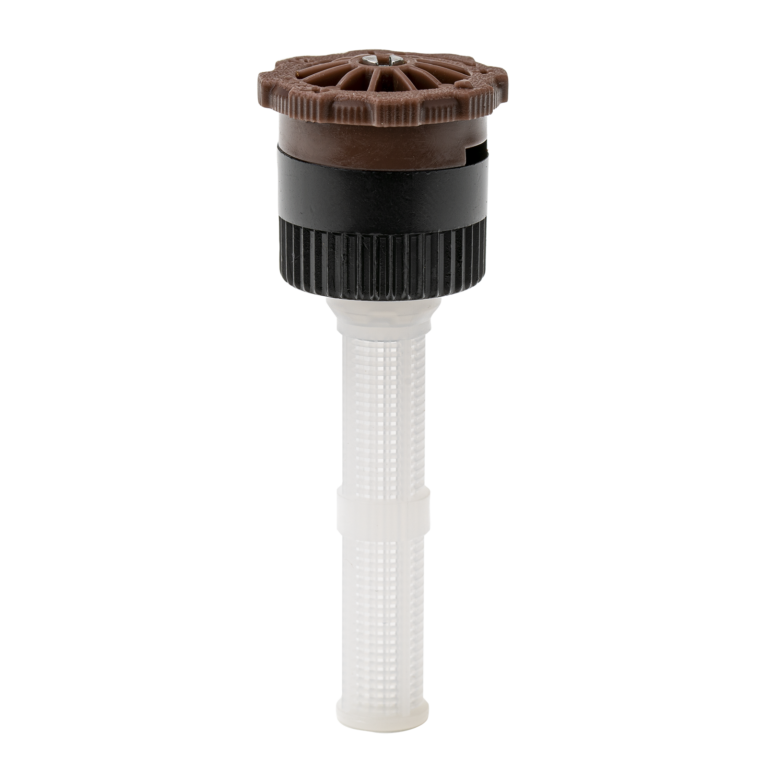

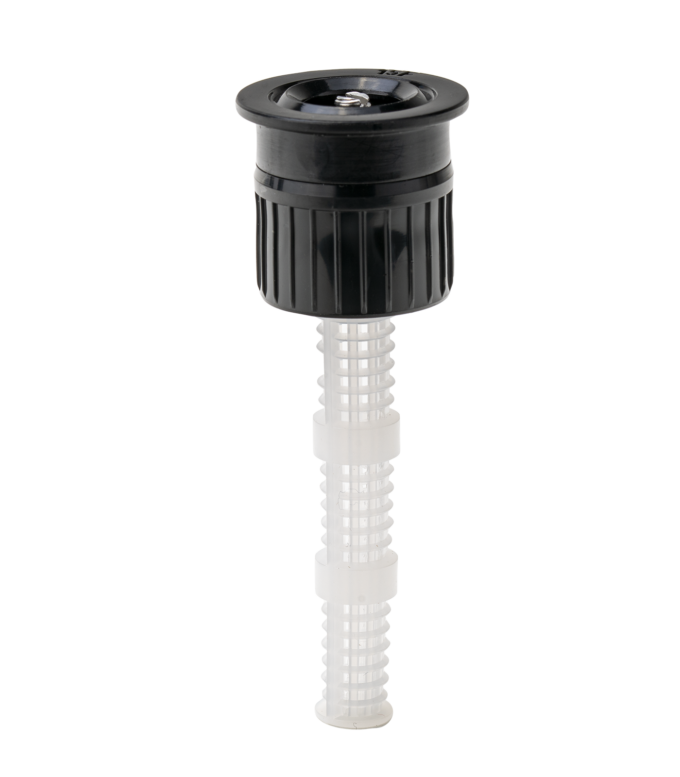

Adjustable Spray Nozzle 12′ Female

Spray nozzles are important, but often an overlooked component of a well-designed irrigation system. The proper nozzle ensures accurate, even delivery of water in the pattern you need. Adjustable Nozzles have a superior spray pattern that ensures proper precipitation rates throughout the adjustment. Extra long filters provide longer time between cleanings.

  • Adjustable spray pattern from 0° to 360°
  • 3.6m Radius
  • Female Thread
  • Match precipitation – across various radii and patterns

SKUKNFV12 Category
Close
Additional information
Thread

Female

Close

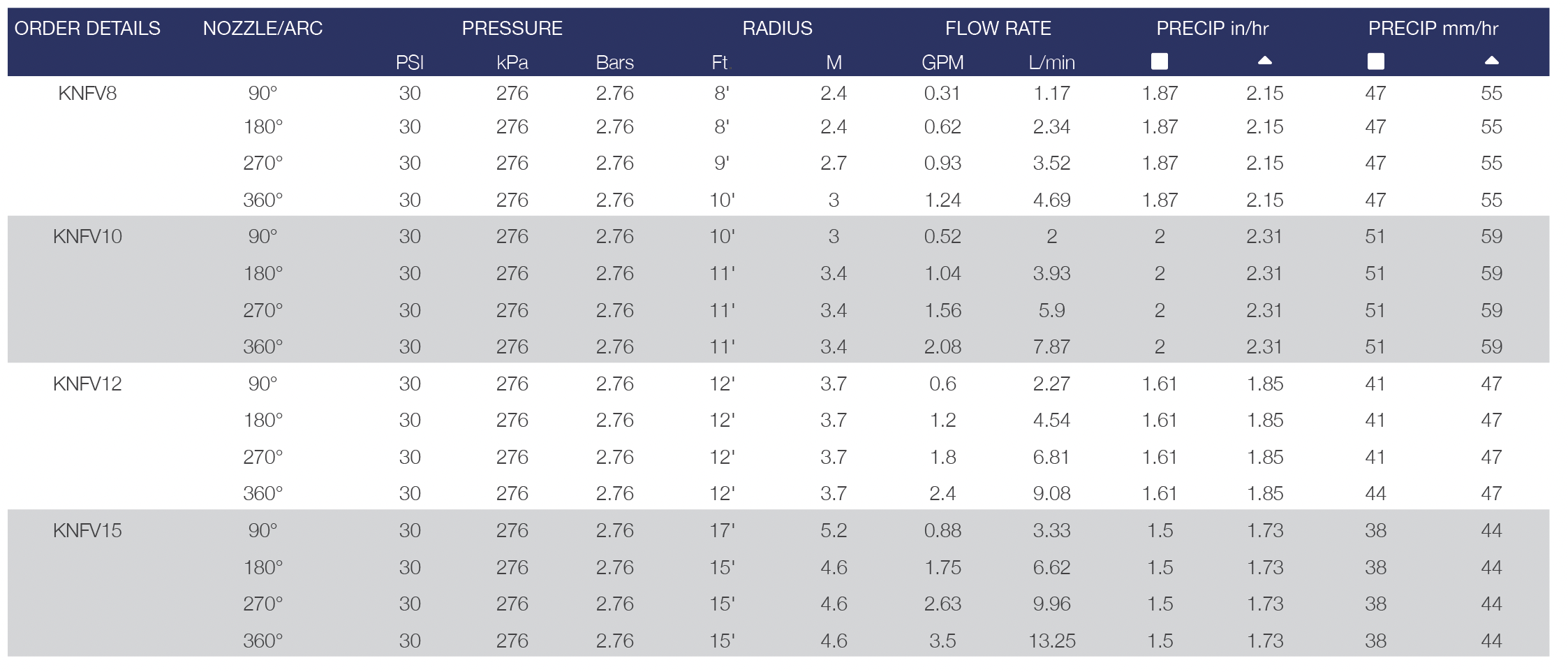

Performance Data

Performance Data

Download Full Performance Data

ArcPressure (kPa)Radius (m)Flow Rate (L/min)Precip. (mm/hour)
90°138
207
276
345
3.66
3.96
4.27
4.27
2.46
2.65
3.03
3,41
42
39
38
43
180°138
207
276
345
3.66
3.96
4.27
4.27
4.92
5.30
6.06
6.81
42
39
38
43
270°138
207
276
345
3.66
3.96
4.27
4.27
7.19
7.95
9.08
9.84
41
39
38
41
360°138
207
276
345
3.66
3.96
4.27
4.27
8.33
9.84
11.73
13.25
36
36
37
42

Close
Reviews

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
J.
Effective and reliable

Great spray nozzle. Adjustable spray radius means one product for all sprinklers.

Range

CodeDescriptionThrowSprayQuantity
KNFV88′ Female Thread2.4m0-360° Adjustable Spray1
KNFV1010′ Female Thread3m0-360° Adjustable Spray1
KNFV1212′ Female Thread3.6m0-360° Adjustable Spray1
KNFV1515′ Female Thread4.5m0-360° Adjustable Spray1
KNFV8TP8′ Female Thread Bulk2.4m0-360° Adjustable Spray20
KNFV10TP10′ Female Thread Bulk3m0-360° Adjustable Spray20
KNFV12TP12′ Female Thread Bulk3.6m0-360° Adjustable Spray20

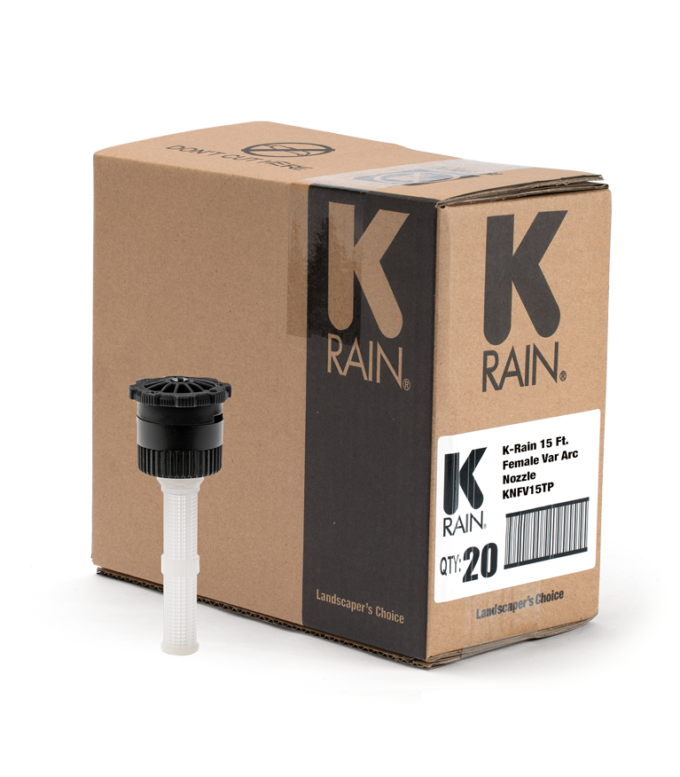

KNFV15TP15′ Female Thread Bulk4.5m0-360° Adjustable Spray20
