SPECIFICATIONS
SPECIFICATIONS
| Material | ABS Polymer Construction |
|---|---|
| Outlets | 4 |
| Cammed | No |
| Use | Water |
| Flow Rate | 40 – 100 l/pm |
| Pressure | 170 – 520 kPa |
| Inlet | 25mm (1″) |
| Outlet | 25mm (1″) |
| Height | 14.6cm |
| Width | 14.6cm |

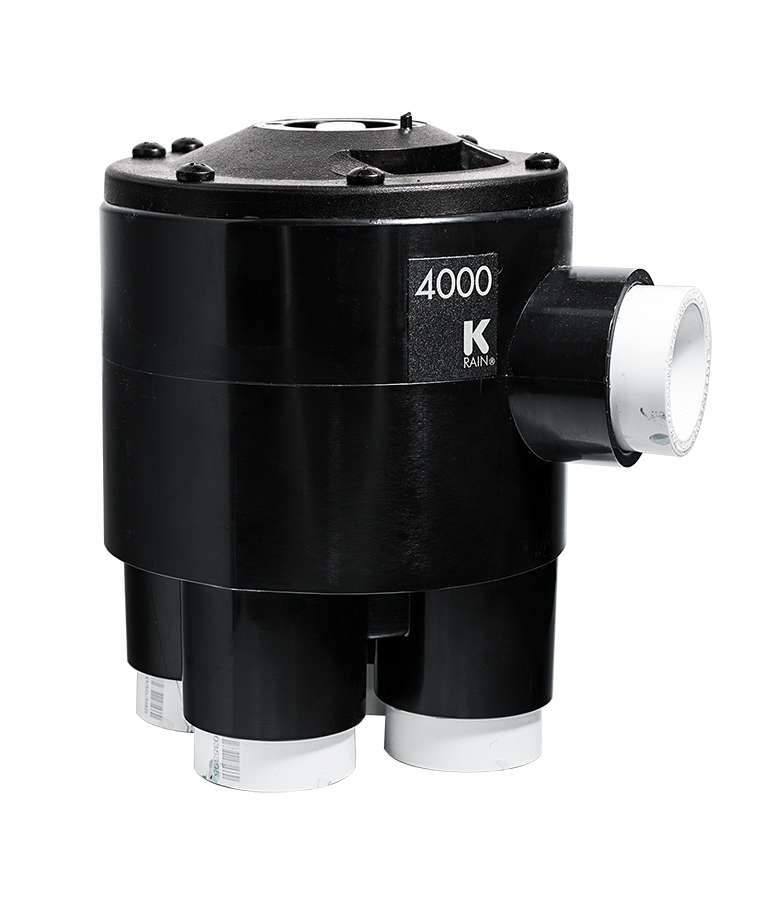

4000 Series 25mm Indexing Valve 4 Outlet
This valve is constructed of high strength, non-corrosive ABS polymer and is not cammed. These patented indexing valves allow for the number of watering zones to be changed quickly and easily. They are ideally suited for both city water and pump applications and may also be used for onsite wastewater or effluent water applications. The simplicity of design and few moving parts ensures ease of maintenance and long service life.
- ABS Polymer Construction – High-strength, non-corrosive body for long product life.
- Simplicity of Design – Valves are easily maintained and serviced for long product life.
- Operates at Low (40 LPM) at Pressures of 170 – 520 kPa – Reliably automates multiple zoned residential and small commercial irrigation or wastewater systems.
Add to WishlistRemove from Wishlist
Add to Wishlist
GUIDES
Reviews
Description
The 4000 offers a reliable, economical way to automate multiple zoned residential and small commercial irrigation systems. These patented indexing valves allow for the number of watering zones to be changed quickly and easily. They are suited for both city water and pump applications and may also be used for onsite wastewater or effluent water applications. This valve is constructed of high strength, non-corrosive ABS polymer and is not cammed.
Product Details
- Inlet: 25mm SLIP
- Outlet: 25mm SLIP
- Pressure Rating: 25 – 75 PSI(170 – 520 kPa)
- Flow Range: 40 – 100 L/pm
| Code | Model | Description |
|---|---|---|
| KR4410 | 4000 Series 25mm | 4 Outlet |
| KR4410RCW | 4000 Series 25mm | 4 Outlet RCW |
| KR4412 | 4000 Series 25mm | 4 Outlet / 2 Zone |
| KR4412RCW | 4000 Series 25mm | 4 Outlet / 2 Zone RCW |
| KR4413 | 4000 Series 25mm | 4 Outlet / 3 Zone |
| KR4413RCW | 4000 Series 25mm | 4 Outlet / 3 Zone RCW |
| KR4414 | 4000 Series 25mm | 4 Outlet / 4 Zone |
| KR4414RCW | 4000 Series 25mm | 4 Outlet / 4 Zone RCW |
