Performance Data
Performance Data

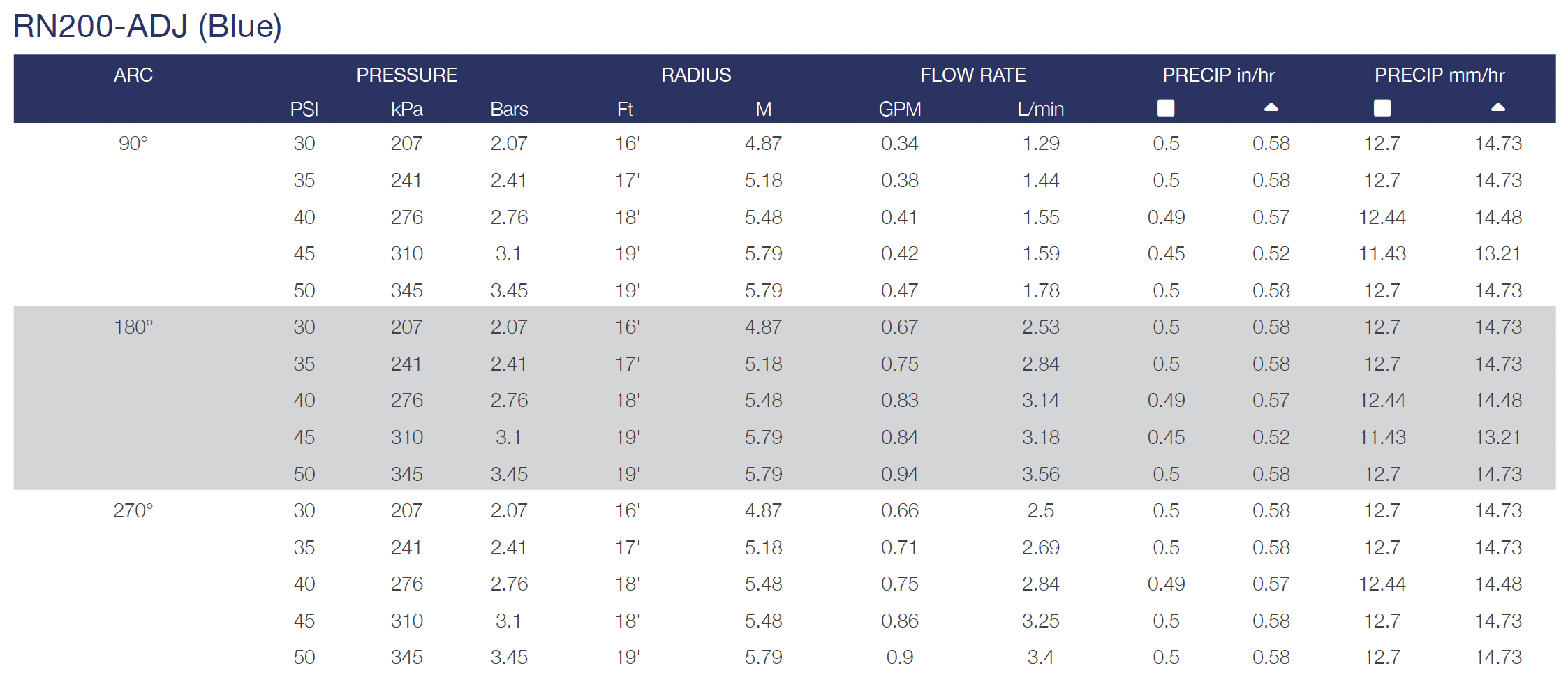

Download Rotary Nozzle Performance Data
Arc | Pressure (kPa) | Radius (m) | Flow Rate (L/min) | Precip. (mm/hour) |
---|---|---|---|---|
90° | 207 276 345 | 4.88 5.49 5.79 | 1.29 1.55 1.78 | 12 12 12 |
180° | 207 276 345 | 4.88 5.49 5.79 | 2.54 3.14 3.56 | 12 12 12 |
360° | 207 276 345 | 4.88 5.49 5.79 | 5.11 6.44 7.19 | 12 12 12 |
