Performance Data
Performance Data
Download Rotary Nozzle Performance Data

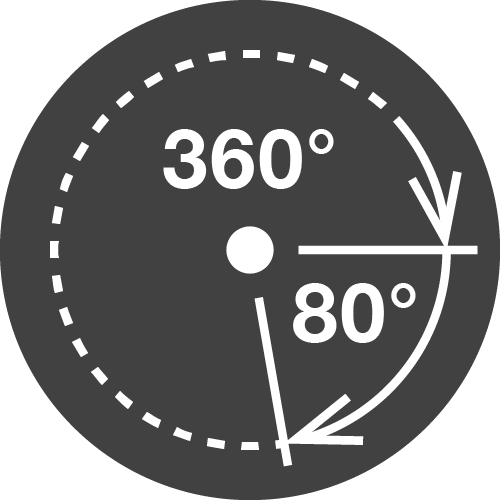

Arc | Pressure (kPa) | Radius (m) | Flow Rate (L/min) | Precip. (mm/hour) |
---|---|---|---|---|
90° | 207 276 345 | 3.96 4.27 4.57 | 0.83 0.95 1.14 | 12 12 12 |
180° | 207 276 345 | 3.96 4.27 4.57 | 1.67 1.89 2.27 | 12 12 12 |
360° | 207 276 345 | 3.96 4.27 4.57 | 3.41 3.79 4.54 | 12 12 12 |
